Sample Gas Conditioning

You Can Trust

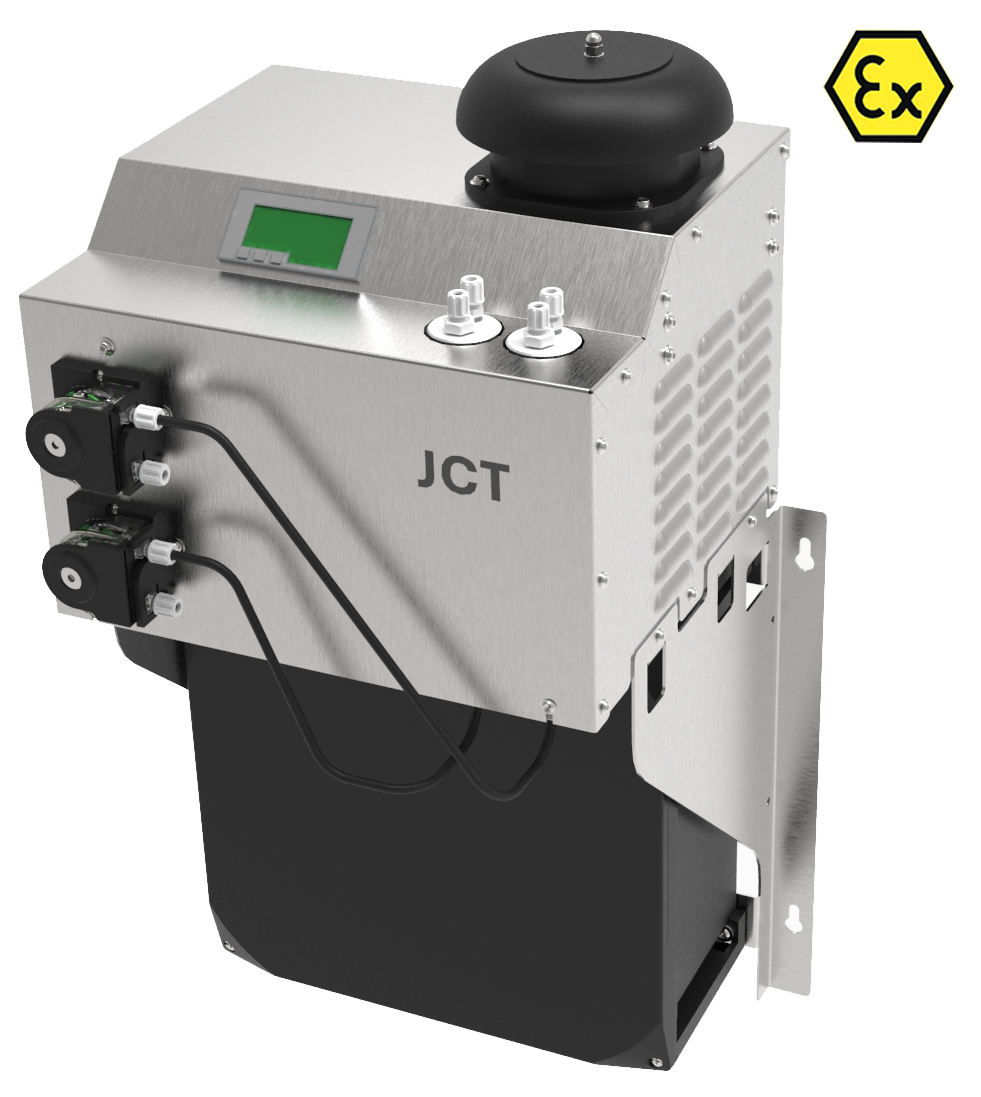

JCSE2-100

Sample Gas Cooler (Compressor)

Applications

  • Extractive gas analysis
  • For hazardous area use ATEX zone 2
  • Emission and process monitoring
  • Continuous drying of sample gas to a precise low and constant outlet dew point
  • Minimises water vapour cross sensitivities and volumetric errors

Benefits

  • High flow rates and high water vapour dew points possible
  • Easy to change heat exchangers
  • Continuous condensate removal
  • Low maintenance operation
  • Various heat exchanger materials
  • One or two independent gas paths
  • Integrated condensate pump
  • II 3G Ex nA nC IIC T3 Gc

Features

  • Proven and reliable technology
  • Digital temperature indication
  • Status contact with acoustic feedback
  • Hot gas bypass compressor technology
  • Temperature sensor monitoring
  • High current volt-free status relay outputs (direct pump switching)
  • Long-life fan with ball bearing
  • Wall mount, optional free stand
  • Small footprint
  • Stainless steel housing
  • Light weight
JCSE2-100  is listed within following categories:
Compressor Coolers, Ex approved, Main Products, Sample Gas Coolers

Downloads

Data Sheets

JCSE2-100 Datasheet

Technical Drawings

JCS-100 Drawing PDF
JCS-100 3D Drawing STP
